A first of its kind product, The FreqlnOut FO1 offers a simple, all-in-one solution that removes the complexities of connecting outboard audio gear. The FreqlnOut is a user-friendly hardware interface with 4 audio inputs and 4 audio outputs. It connects to a computer via USB-C. It allows users to seamlessly integrate outboard audio gear with all the setup directly in their audio software. Perfect for engineers and producers wanting to use outboard gear with least amount of hassle. "Traditionally, integrating outboard audio gear requires complex settings, cabling and latency setup and have inconsistent timing issues when recording. That requires a high level of technical skill and often lacking enough physical inputs and outputs in the sound-card". This takes time and is frustrating. It creates a major obstacle for anyone obtaining and using outboard audio gear.
The FreqInOut couldn't be easier to use. Just plug it in with a single USB cable, install the software, power up, open the interface, and connect your outboard equipment. All the complexity in setting up external effects and instruments inside your DAW have been removed. FreqInOut effectively turns your outboard hardware into DAW plug-ins.
FreqInOut includes a multi-instance powerhouse VST, AU, and AAX plug-in. The ultra low jitter audio synchronization between host and hardware ensures bit-perfect audio, while the internal, professional-grade ESS 32-bit audio converters running up to 192 kHz provide transparent audio translation. The FreqInOut Plugin also contains a hardware MIX making it possible to create a parallel MIX of any hardware gear connected mixing Wet/Dry signal paths; you also get Mid/Side functionality as well.
You can even scan its QR code from the Plugin, opening your camera so you can take a photo of your connected equipment, turning it into the skin of the plugin :)
With FreqInOut, you can bring all your real outboard processors, effects and instruments into your mix effortlessly, saving time on complex setups while adding new features like MIX for parallel processing, M/S mode, and Analog Matrix for your signal flow routing. The multiple analog processing circuits allow more than one audio signal to be processed at the same time within your digital workflow; something that is impossible with single-circuit analog processors.
MacOS
Plugin formats: VST3, AU, AAX.
Mojave 10.14 to Ventura 13 on 64bit Apple OS and 64bit Hardware.
CPU Apple Silicon or Intel.
Core Audio based audio interface (Internal or External) for Digital Audio Workstation (DAW) main audio output^.
2GB RAM available on top of DAW requirements*.
100MB disk space for the software installation.
USB port on the computer for direct connection.
1280x800 (or higher) display resolution.
Windows
Plugin formats: VST3
Windows 10 (Build 1909 and later) and Windows 11. 64Bit OS.
CPU Intel® Core™ i5 (or higher) processor or an AMD Ryzen 5 (or higher) multi-core processor with minimum 4-cores and minimum 2Ghz processor speed.
ASIO based audio interface for DAW main audio output^.
2GB RAM available on top of DAW requirements*.
100MB disk space for the software installation.
USB port on the computer for direct connection.
1366x768 (or higher) display resolution.
Digital Audio Workstations
Ableton Live 10 (or higher) 64bit.
Bitwig Studio 4 (or higher) 64bit. (plugin hosting mode set to: Within Bitwig)
Cubase 11 and Nuendo 11 (or higher) 64bit.
Studio One 6 (or higher See Notes ) 64bit.
Logic Pro X (or higher) 64bit.
Protools on OSX (Apple Silicon and Rosetta).
Reaper 6.8 (or higher)
Reason 12.6 (or higher)
FL Studio 21.1 (or higher)
Other DAWs may work but have not been officially tested and therefore are not officially supported (yet) - please contact support if you intend to purchase Freqport product to run on a different DAW than listed above.
Optimal main audio interface buffer-size setting should be 512 samples (or lower).
Supported System Link
https://support.freqport.com/portal/en/kb/articles/supported-systems#Digital_Audio_Workstations
Connect any kind of outboard equipment to the FreqInOut, open the Plugin in your DAW and use it without the hassle of advanced setup, routing, latency and timing issues when recording
Integrate FreqInOut together with your existing sound card to add 4 or 8 more Inputs & Outputs. Enjoy seamless expansion with all the powerful features of FreqInOut.
Use the built-in hardware Matrix that allows you to effortlessly reconfigure the signal flow through your outboard equipment all without adding latency.
Enhance your audio workflow with the FreqInOut Plugin. Enable M/S mode, utilize Hardware MIX for parallel processing, and fine-tune your Gain Staging.
Capture your hardware settings by scanning a QR code, allowing your camera to create a custom skin in the plugin.
Multiple analog processing circuits allow more than one audio signal to be processed at the same time within your digital workflow.
Pro-grade ESS 32 bit converters up to 192 Khz
USB POWER: USB Power - 5 W
POWER INPUT: DC plug-in power (optional) 12V DC 1A - Use only Freqport adaptor.

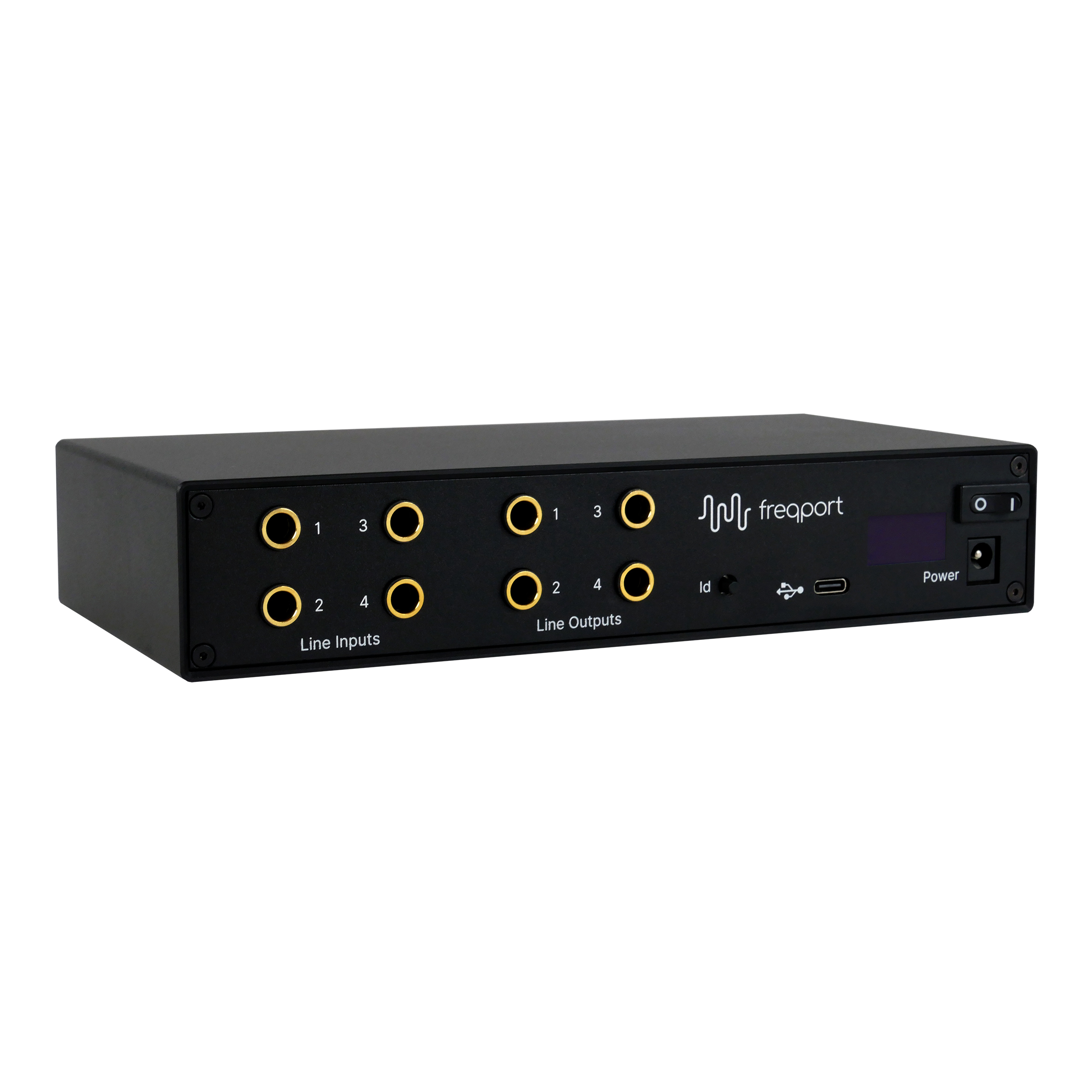

AUDIO INPUTS: 4x Jack Inputs (+18dBu levels with -10dBV/+4dBu)
ADAPTOR MAINS: 100Vac - 240Vac. 50/60Hz
AMBIENT TEMPERATURE RANGE: 0 to 50C
PRO CONVERTERS: 120dB DNR 32bit DAC, 116dB DNR 32bit ADC Supporting up to 192kHz sample-rate
DIMENSIONS: Unit: 220mm X 105mm X 43mm Boxed: 290mm x 130mm x 70mm
WEIGHT: Boxed: (1.40kg)
OPTIONAL EXTRAS:Rackmount kit (Add 2x FreqInOut)
SUPPORTED HOSTS: Major DAW’s and OS’s supported. Refer to freqport.com for specific details
AUDIO OUTPUTS: 4x Jack Outputs (+18dBu levels) with ANALOG MATRIX per output.
