Heritage Audio

R.A.M. System 5000

5.1 Rackmount Monitoring System

View Dealers

R.A.M. System 5000 line art

Standing for Reference Audio Monitoring systems, this whole new line is the result of more than 2 years of intensive, full time R&D at the Heritage Audio Headquarters.

The Heritage Audio R.A.M. System 5000 employs relay switching all the way through as its working principle, including the 64 step relay ladder attenuator system employed for the master level, only previously found in the mega expensive units.

Also present is the acclaimed HA Bluetooth connectivity for mobile devices.

A classic look, with massive red knob for easily dialing of the 64 steps of attenuation, rounds the pack.

The R.A.M. Systems finally makes mastering grade monitoring affordable.

Features

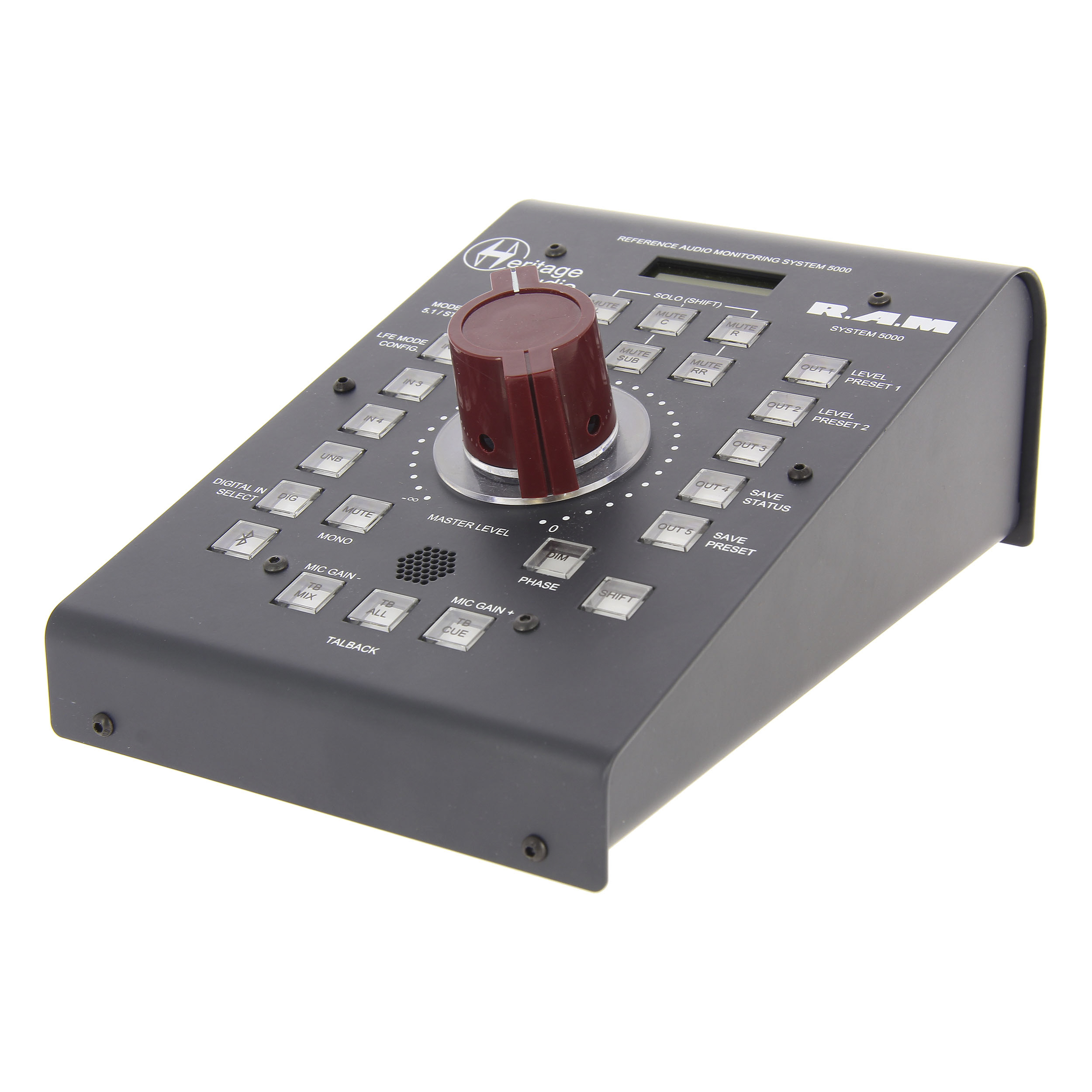

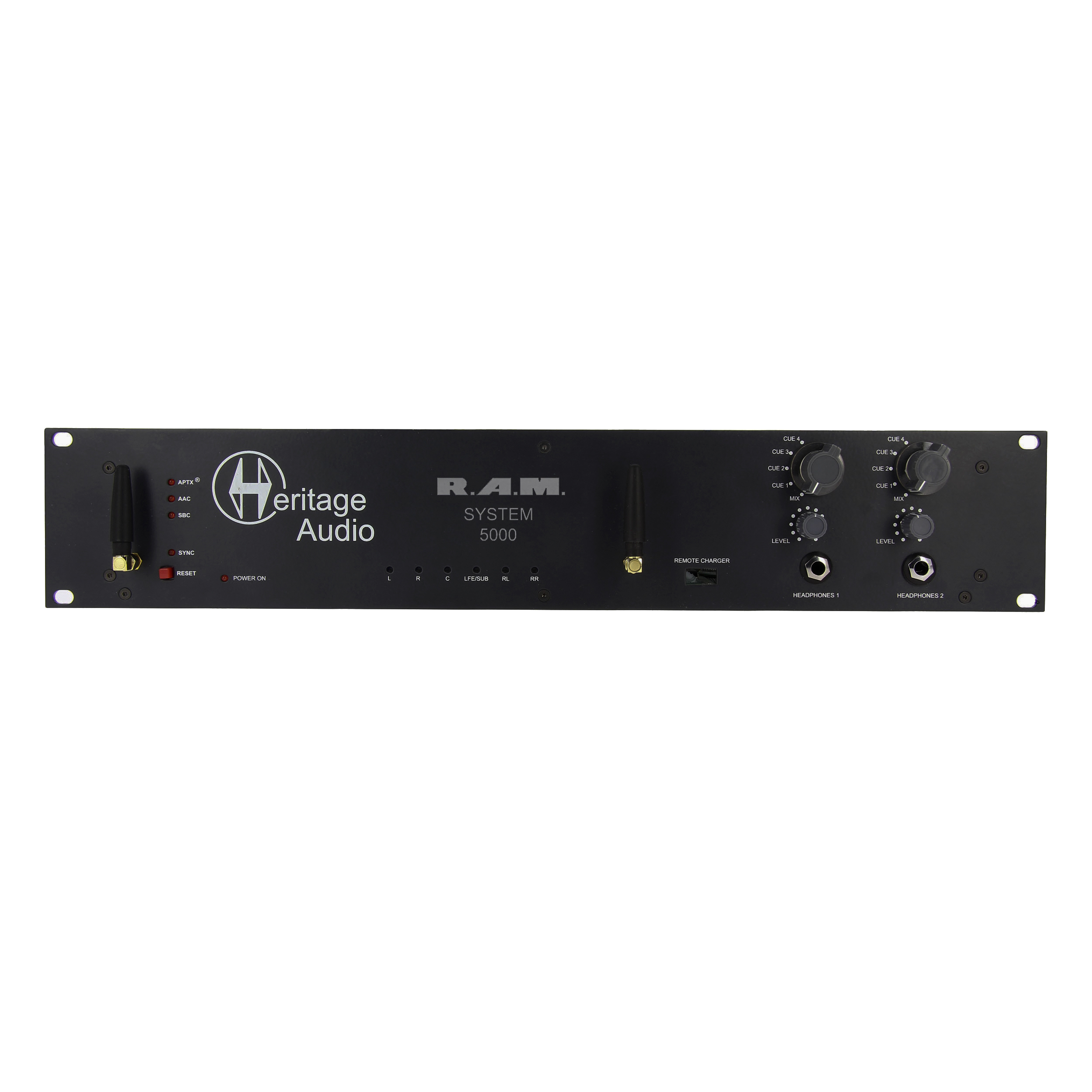

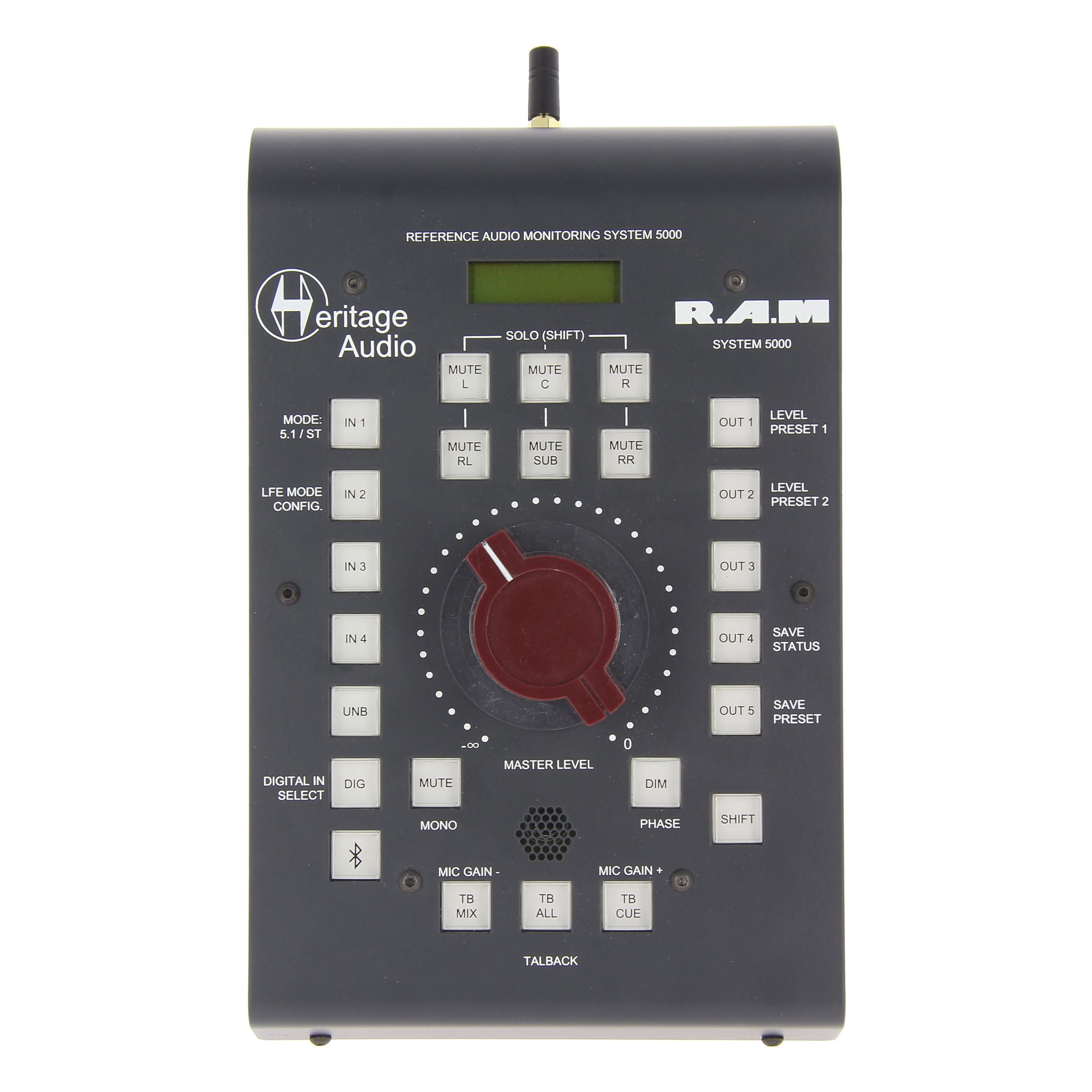

  • Consists on a wireless remote and a main rackmounted unit with classic look.
  • Talkback is also wireless!
  • All functions on high quality illuminated engraved buttons.
  • Configurable for 5.1 or stereo use. Unit is 5.1 ready without buying any external add ons!

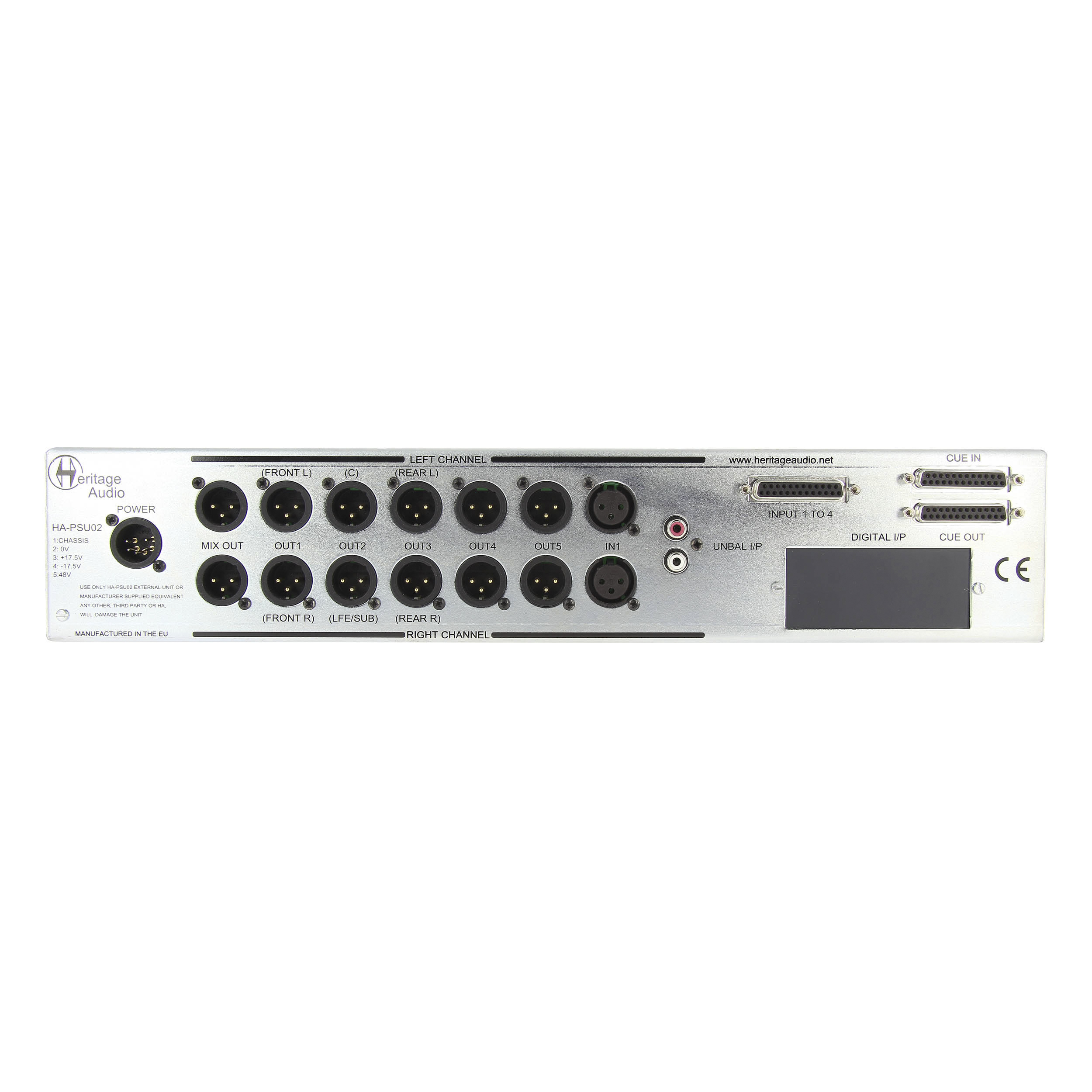

  • 4 pairs of balanced +4 analog inputs in Stereo mode
  • 1 5.1 input plus an additional stereo +4 analog input in stereo mode.
  • 1 pair of unbalanced inputs in RCA connectors.
  • Wolfon WM8741 24 bit/192 Khz DAC ( still the best!) selectable between AES/EBU, SPDIF and Toslink ( picture shows it optional, final unit is included)
  • Bluetooth pro audio quality INPUT for easy mobile device integration.
  • 4 pairs of CUE inputs on DSUB connectors, for making specific cue mixes to musicians.
  • 1 5.1 OUTPUT plus 2 more stereo ones in 5.1 mode.
  • 5 pairs of stereo outputs in stereo mode.
  • Independent MIX output, which follows Input, pre fader.
  • Independent Subwoofer output for easily sharing it between different speaker pairs, including the 5.1 one.
  • MUTE/ SOLO functions for all the individual speakers.
  • 2 User assignable preset levels for easy recalling of common settings.
  • MUTE, DIM, MONO and PHASE REVERSE functions available.
  • 2 high current, diamond buffer based, headphone amplifiers. Source selectable between mix and cue signals.
  • Remote includes a long life battery, rechargeable via USB cable. Main unit includes a charging dock.
