Kahayan

PBX-1 EQ

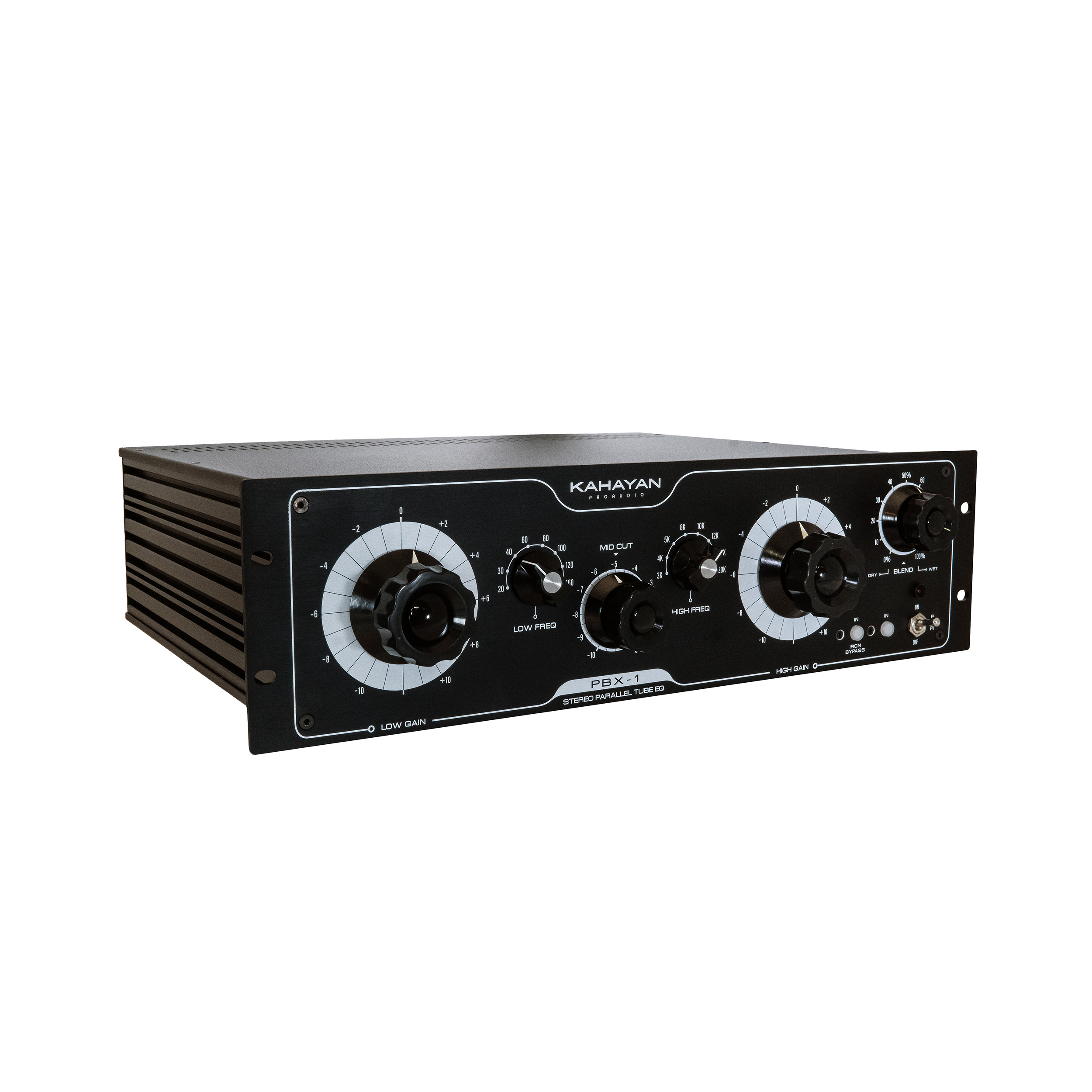

Stereo Parallel Tube EQ in 3U rack format

View Dealers

PBX-1 EQ line art

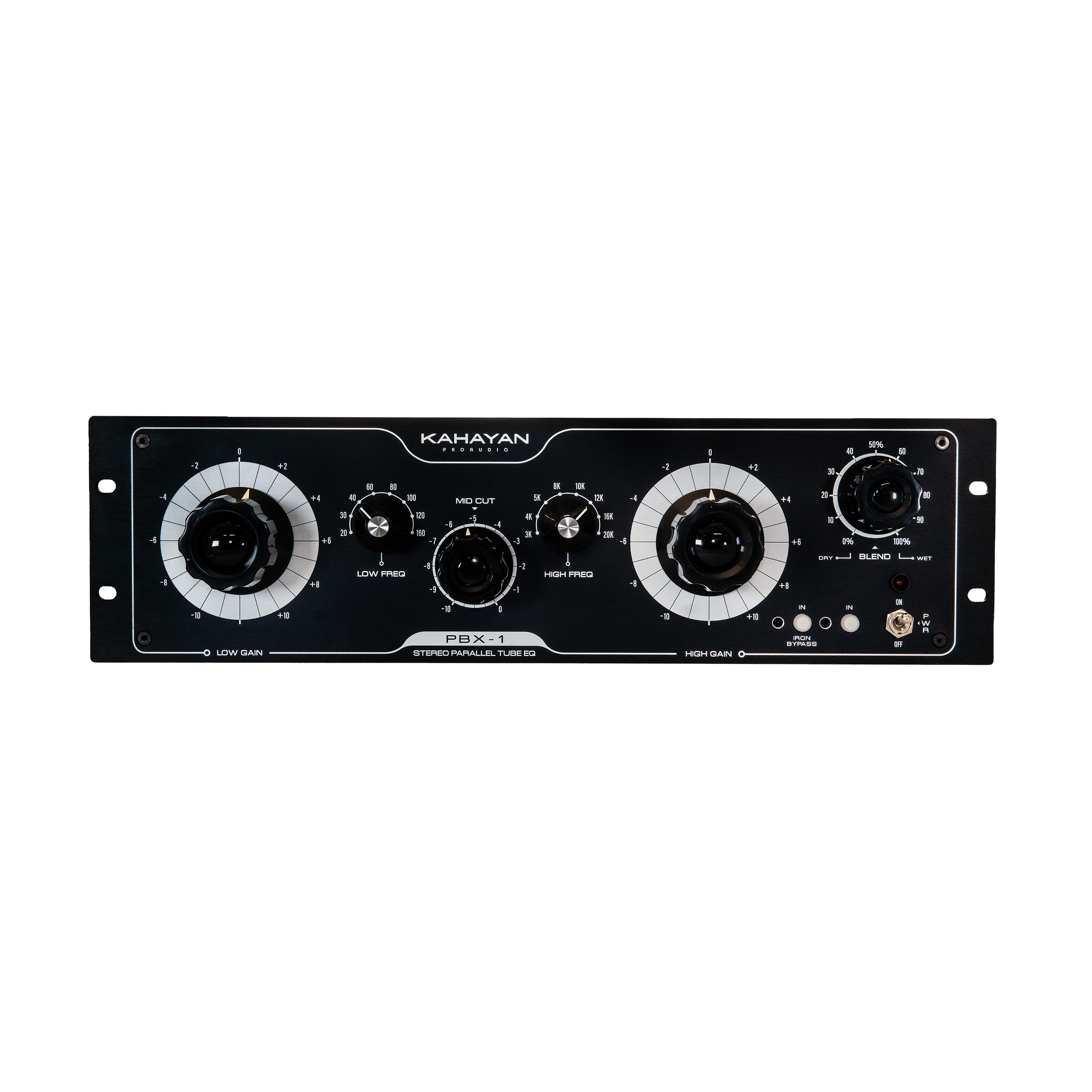

TWO-BAND EQUALIZER: BOOST OR CUT

Just two gain controls: Low and High. You can boost or cut the selected frequency. This gives you the option to sculpt your mixes or tracks in an easy and fast way.

SELECTED MUSICAL FREQUENCIES

All the frequency points of the EQ have been carefully selected to have musical response to the user. Don’t be afraid of the point, just listen and enjoy.

MID-CUT “CLEANER” CONTROL

Many modern styles call for lively, pronounced low frequencies that don’t muddy the mids. This control is linked to the Low frequency control and allows you to attenuate the mid-linked frequency to each frequential point, resulting in clean midrange that compliments the lows.

PARALLEL PROCESSING THANKS TO THE BLENDER CONTROL

The Blender control allows for parallel processing; create space by boosting some frequencies and then adjusting the blender control. Be creative!

TONE SHAPING WITH THE IRON BYPASS SWITCH

This switchable output transformer is part of a classic midrange sound. Bypass it to smooth the dynamics of your sound. A new option in your sonic toolbox.

Features

  • Give your mixes analog warmth and silky air
  • Easy to use: two-band equalizer
  • Get the “smile” EQ in your master bus
  • Few controls and many results
  • Incredibly low noise floor for a pure sound

Specifications

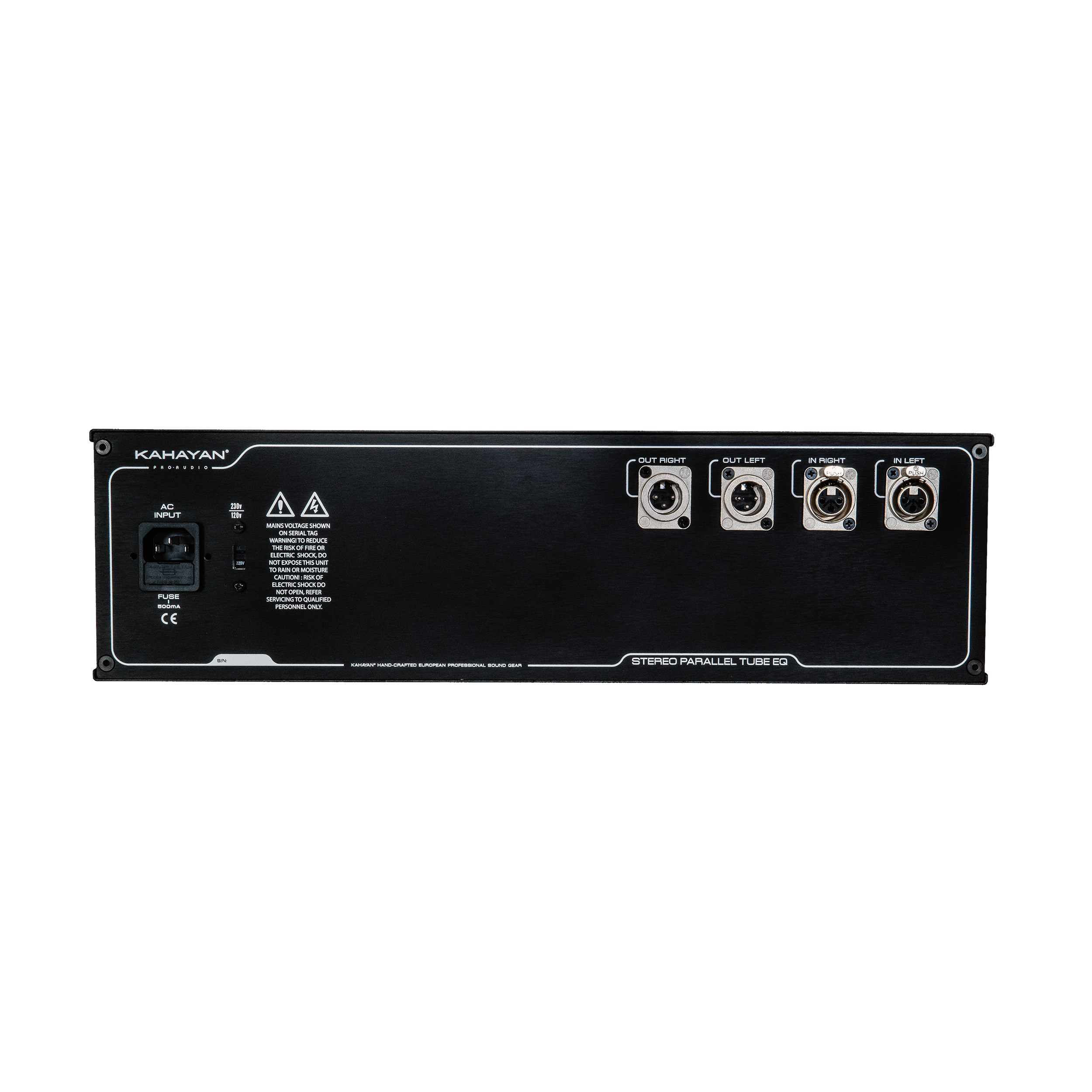

  • 2 Inputs: Balanced XLR and 1/4” (accepts unbalanced)
  • 2 Outputs: Balanced XLR (accepts unbalanced) and Unbalanced 1/4”
  • 2 Level +4 dBu nominal
  • Bypass Switch bypasses EQ and tube circuits
  • Iron Bypass Switch
  • Frequency Range: 20 Hz to 26 kHz
  • Maximum Input Level: +21dBu
  • Tube model: EF86 x2
  • Power Consumption (120/230VAC): 70 watts
  • Mains Voltage & Frequency (VAC/Hz): Internal Universal Power Supply 100-230 VAC / 50-60Hz
  • Weight: 7,5Kg
  • Dimensions: 82x435x285 mm (Height/Width/Depth)
