Avantone Pro

CK-7+

Large Capsule Multi-Pattern FET Condenser Microphone

View Dealers

CK-7+ line art

Pro-quality Range and Mod-shop tone, without the Big Price.

The Big Boy of Avantone’s "Cabernet (C-series)" true condenser FET circuit LDC mic family. Avantone’s proven transformer coupled circuit is paired with our new 34mm, super sensitive 6-micron capsule. Avantone’s new proprietary “edge terminated, dual backplate” and “custom style” Metalized capacitors help provide exactly what you’d want from the finest “studio-standard” FET-LDC mics money can buy. A full low-end, rich midrange response and well-defined smooth highs, without the harsh edge associated with mics that don’t cost a king’s ransom.

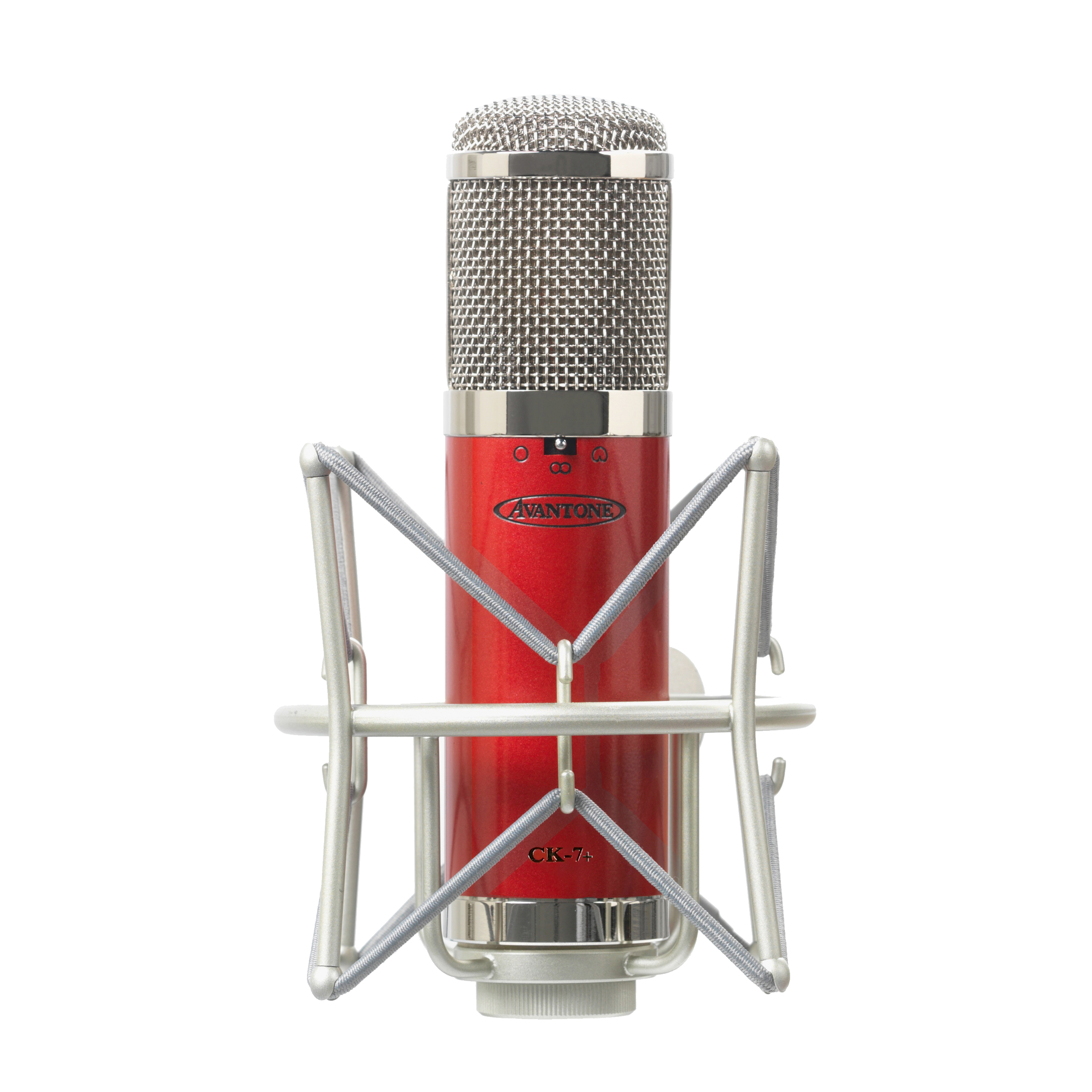

Anyone that is familiar with Avantone’s C-series, knows they are built tough. The CK-7 sports a solid brass milled hull, and woven steel-grill, without any breakable plastic parts employed. A custom “Retro-style” 16-point shock mount provides superior isolation from vibration, assuring no low-end resonance ever reaches the mic. An 80k high pass and -10db pad are ready to be engaged, to keep your track immaculately clear from unwanted noise, and distortion free. When you consider the three-way polar pattern selector (Cardioid, Omnidirectional and figure 8), full range response, and noise abatement, the CK-7 might be the most versatile, and inexpensive FET LDC available.

Specifications

  • Type: True Condenser
  • Polar Pattern(s): Cardioid , Omni , Figure 8
  • Capsule: 34mm 6-micron capsule
  • Frequency Response: 20-20,000 Hz +/- 3dB
  • Output Impedance: <=250 Ohms
  • Sensitivity: -38 dB (0 dB=1V/Pa)
  • S/N Ratio: 77dB re 1Pa
  • Maximum SPL: 139dB (0.5% THD @1000Hz)
  • Equivalent Noise Level: (A-Weighted per IEC 286-4) < 16 dB
  • Output Connector: Male XLR 3-pin
  • High-Pass Switch: 80 Hz 6dB/octave
  • Attenuation Switch: -10 dB
  • Power Requirement: Standard 48 Volt Phantom / 5mA

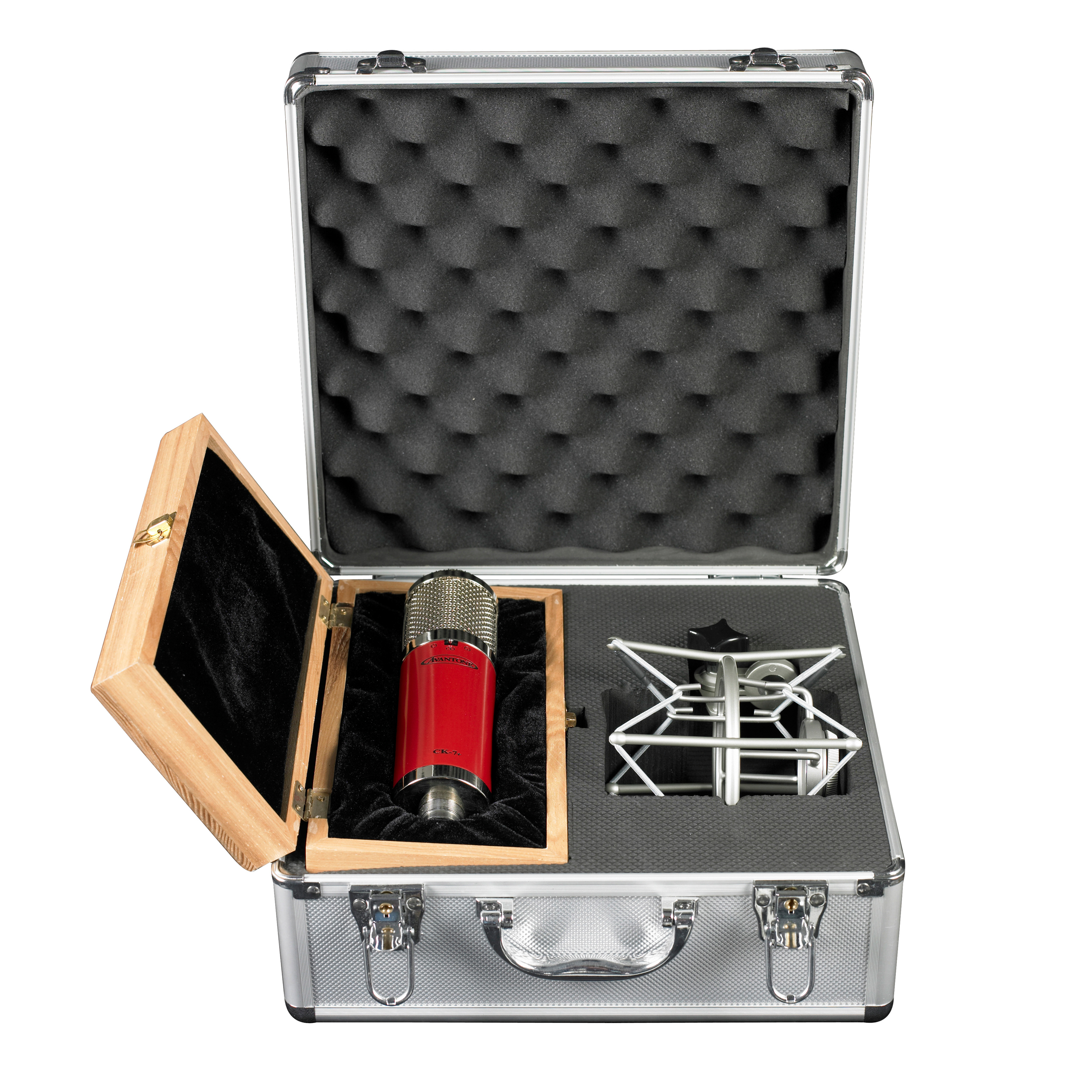

  • Included Accessories: Shockmount, Wooden Box in Metal Carrying Case
  • Dimensions: 187mm x 51mm / 7.5" x 2"
  • Weight: .65 kgs / 1.4 lbs.
  • Finish: Polished Nickel trim / Metallic Cabernet Red Body
