TK Audio

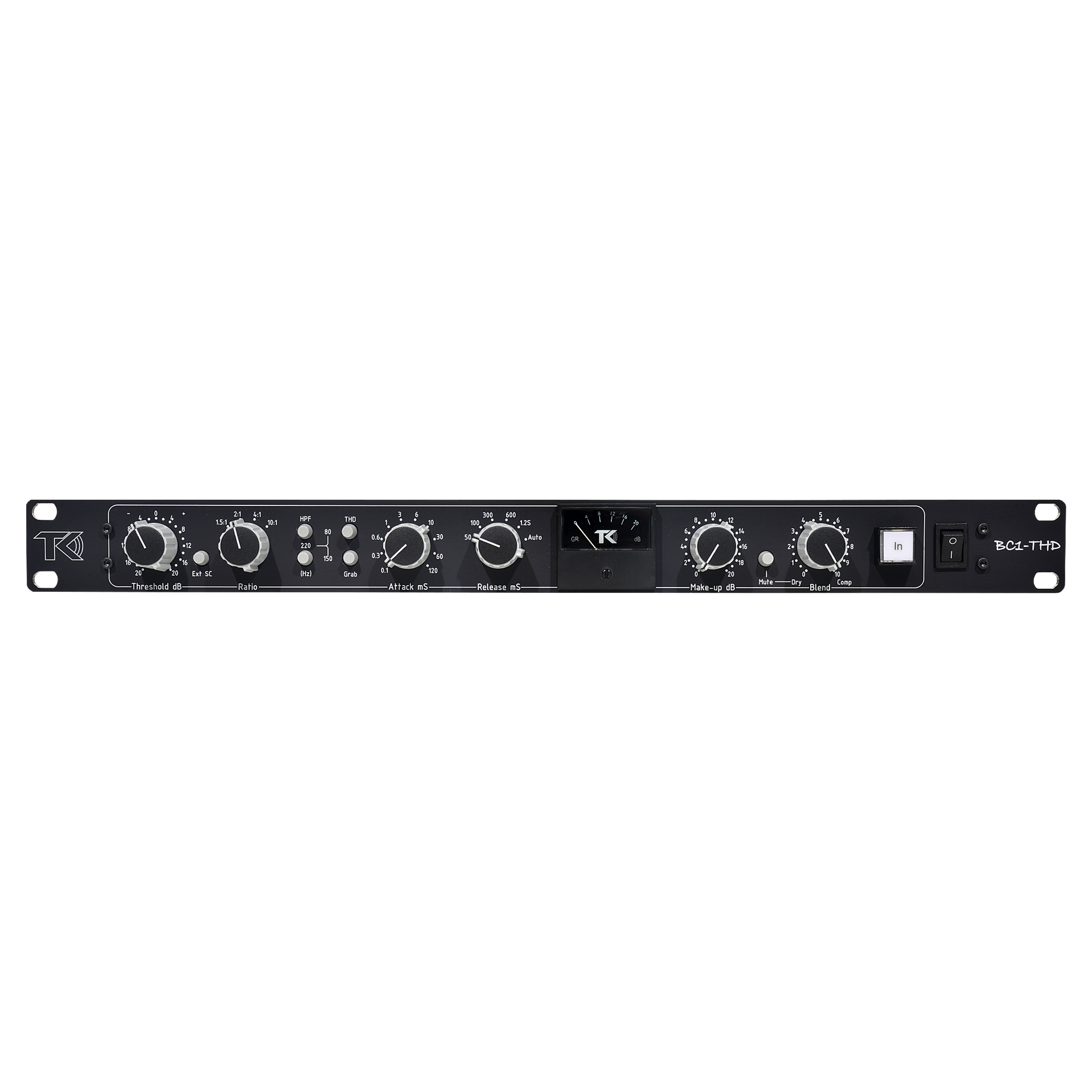

BC1-THD

Stereo bus compressor

View Dealers

BC1-THD line art

The BC1-THD provides smooth bus compression that applies for both mixing and tracking.

Engineers call it “The Magic Glue” when the BC1-THD’s transparent compression strengthens mixes without compromising clarity.

The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied which makes the BC1-THD less responsive to low frequency energy. The THD function adds more harmonics to the signal and the “grab” mode selects a harder threshold knee on all four ratio settings. Smooth and transparent compression will never go out of fashion.

Specifications

  • Threshold: -20dB to +20dB
  • External sidechain: in/out
  • Ratio: 1.5:1 / 2:1 / 4:1 / 10:1 /
  • HP Filter: 80Hz, 150Hz, 220Hz, -6dB octave
  • THD: adds more even harmonics
  • Grab: selects a harder thres hold knee
  • Attack: /0.1/0.3/0.6/1/3/6/10/30/60/120mS
  • Release: 50mS/100mS/300mS/600mS/1.2S/Auto
  • Gainreduction meter
  • Make-up: 0 to +20dB
  • Dry signal mute
  • Blendcontrol: from dry to compressed
  • Compression in/out
  • External sidechain input: unbalanced TRS jacks
  • Internal, regulated powersupply with a toroidal transformer
  • 115 or 230V, selectable
